LCD Screen for Mars

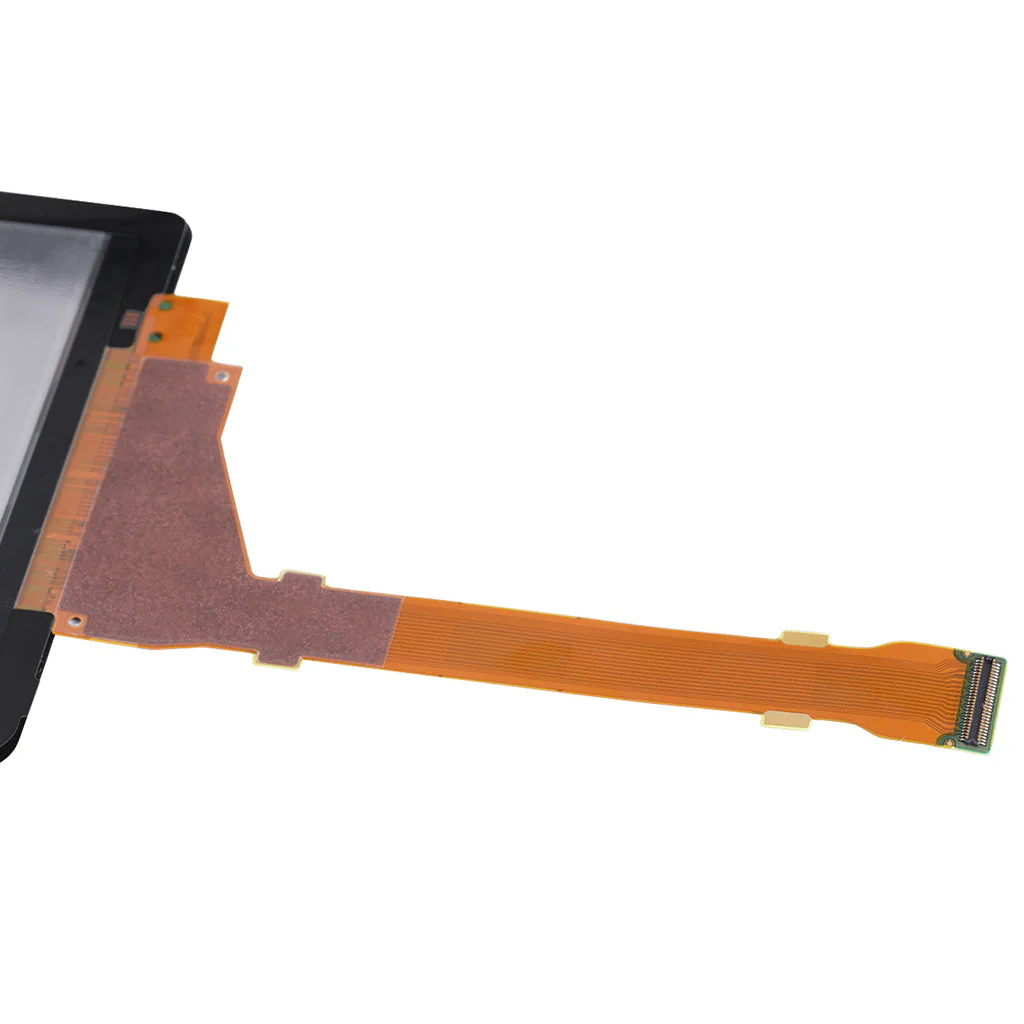

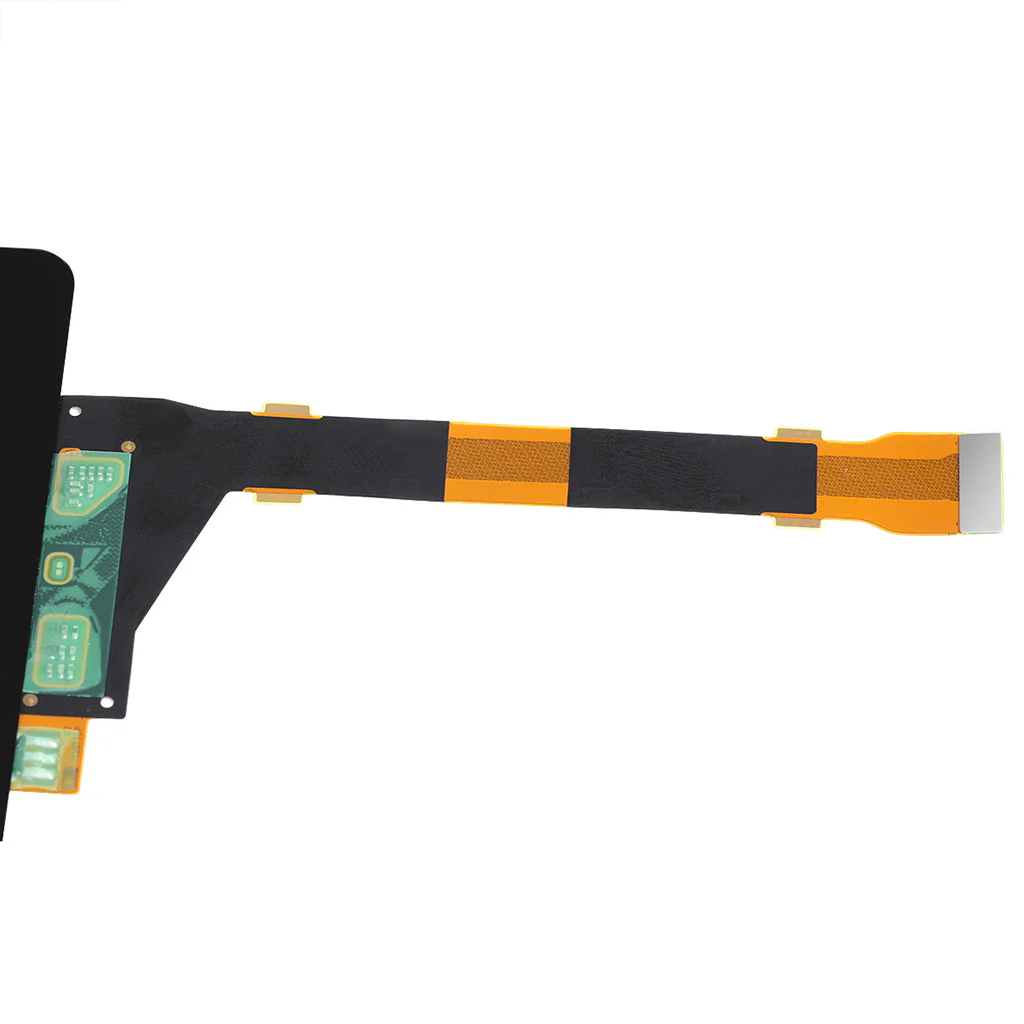

• Original 2K LCD screen used on ELEGOO Mars 3D Printer with tempered glassed pre-installed
• SHARP 5.5 inch LCD with 2560x1400 high resolution ensures your printing with high precision

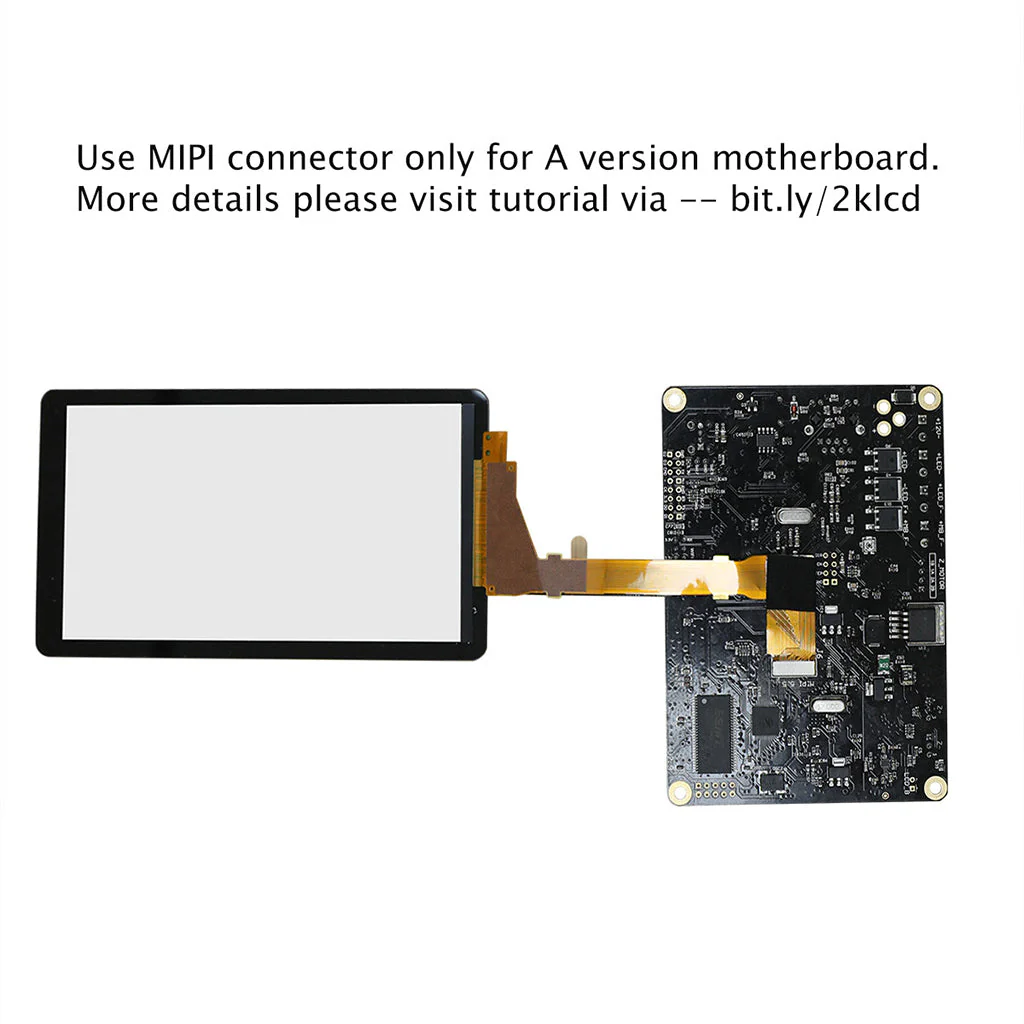

• Extra MIPI connector provided for M05 or older version of Mars 3D printer users.(compatible with Photon)
• Assembly of the 2K LCD screen is straightforward and easy. (See tutorial video links in the description below)
• The 2K LCD screen kit is well-protected with an anti-static PE foam package in the box

Product description

How to replace the LCD:



LCD screen specification:
Size: 5.5 inch
Resolution: 2560x1440
Pixel precision: 47.25um
Display area: 68.04x120.96mm
Appearance size: 70.94x128.49x1.45mm
Ratio: 9:16
Weight: 25.0g
Interface: MIPI

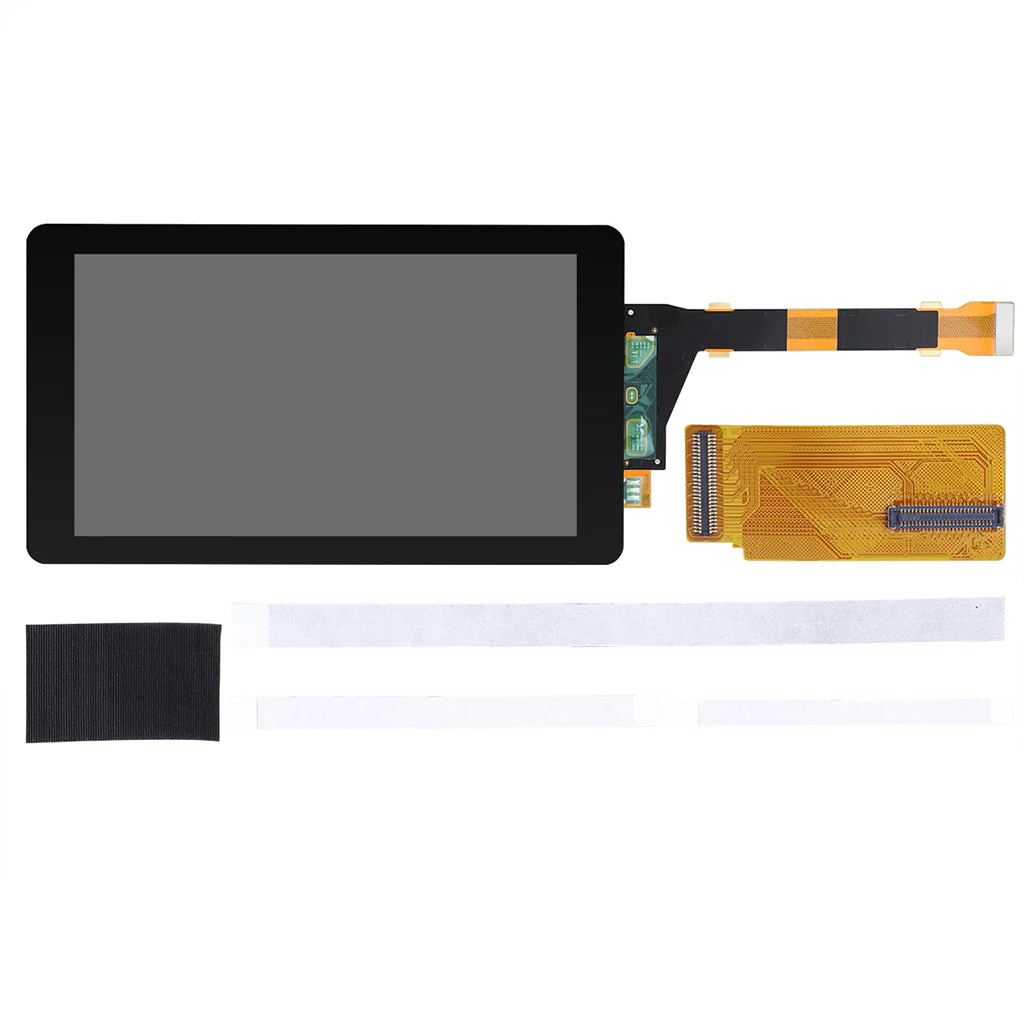

Component List:
1 x 2K LCD with tempered glass preinstalled

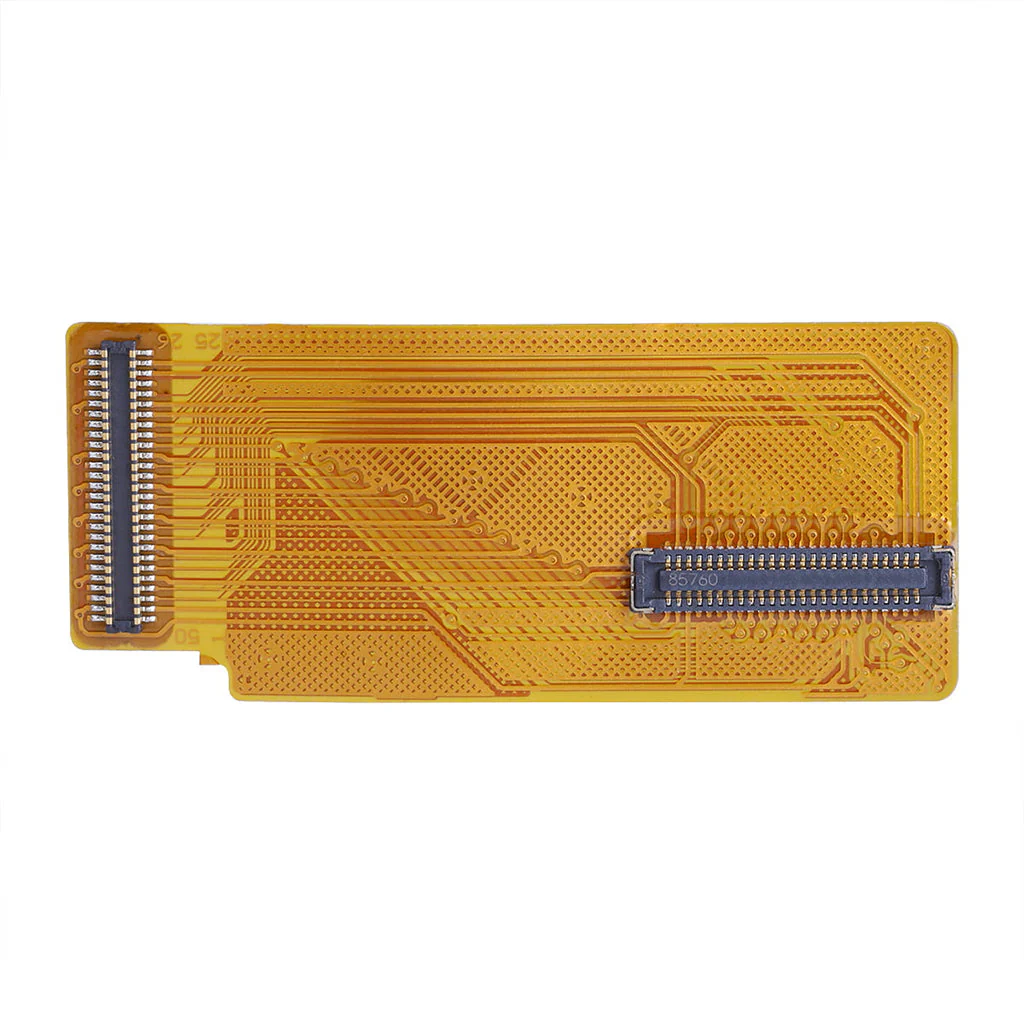

1 x MIPI Connector
Some double-sided adhesive
